Getting started with Query Notifications with SQL Server 2008 R2

I’ve been experimenting with Query Notifications in SQL Server 2008 R2. This looks like a really cool way of implementing real-time features into your applications without constantly battering your database with select statements. Instead we can request a notification for when the data has changed for a query. Here’s a quick demo of the feature.

CLR should be enabled

EXEC sp_configure 'show advanced options' , '1';
GO
RECONFIGURE;
GO
EXEC sp_configure 'clr enabled' , '1';
GO
RECONFIGURE;
GO

Create a test database to contain the query notification objects.

CREATE DATABASE TestQueryNotifications;
GO
-- Enable broker
ALTER DATABASE TestQueryNotifications SET ENABLE_BROKER;

Create a queue in the test database.

USE TestQueryNotifications;
CREATE QUEUE my_test_queue;
GO

Create a service on the queue.

CREATE SERVICE my_test_service ON QUEUE my_test_queue
(
	[http://schemas.microsoft.com/SQL/Notifications/PostQueryNotification]
);
GO

Next we create a test login and give it access to the test database.

-- Create a test user
CREATE LOGIN qn_test WITH PASSWORD = 'secretpassword';
-- add user to current database
CREATE USER qn_test FROM LOGIN qn_test;

Next we’re going to create a special schema for query notifications and set it as the default for the above user. This is because of a little problem explain here; schemas and query notifications.

CREATE SCHEMA qn_schema AUTHORIZATION qn_test;
GO
ALTER USER qn_test WITH DEFAULT_SCHEMA = qn_schema;
GO

Create a test table.

CREATE TABLE dbo.my_test_table
(
	id INTEGER IDENTITY(1,1) NOT NULL PRIMARY KEY CLUSTERED,
	random_text VARCHAR(200) NOT NULL,
	dt DATETIME NOT NULL DEFAULT GETDATE()
);
GO

Now we need to add permissions for our user.

-- Add read role to db for user
EXEC sp_addrolemember 'db_datareader', 'qn_test';
GO
GRANT SELECT ON dbo.my_test_table TO qn_test;
-- Grant access to the contract
GRANT REFERENCES ON CONTRACT::[http://schemas.microsoft.com/SQL/Notifications/PostQueryNotification] TO qn_test;
GRANT SUBSCRIBE QUERY NOTIFICATIONS TO qn_test;
GRANT RECEIVE ON QueryNotificationErrorsQueue TO qn_test;
GRANT SEND ON SERVICE::my_test_service  to qn_test;
GRANT CREATE PROCEDURE TO qn_test;
GRANT CREATE QUEUE TO qn_test;
GRANT CREATE SERVICE TO qn_test;

Check the permissions.

EXEC sp_helprotect null, 'qn_test';
GO

If you’re querying two (or more different databases you need to turn on the trustworthy option on each like so. For this example you don’t need to bother.

ALTER DATABASE TestQueryNotifications SET TRUSTWORTHY ON;
ALTER DATABASE db2 SET TRUSTWORTHY ON;
GO

Here’s a simple console app written in c# that will use the query notification we have setup. This is slightly modified code from this forum. Assuming your SQL Server instance is listening on ‘localhost’ you shouldn’t need to change this code. The key part of this code is dependency = new SqlDependency(command, null, 60); The 60 indicates the timeout for the query notification. Essentially this means the client will refresh the results if a notification has not yet been received.

?View Code CSHARP
using System;
using System.Collections.Generic;
using System.Text;
using System.Data;
using System.Data.Sql;
using System.Data.SqlClient;
using System.Configuration;

class SqlNotificationConsole
{

    private static SqlDependency dependency;
    private static string connectionString = @"Data Source=localhost;Initial Catalog=TestQueryNotifications;User Id=qn_test;Password=secretpassword";

    static void Main(string[] args)
    {
        var connection = new SqlConnection(connectionString);
        SqlDependency.Start(connectionString);
        RefreshDataWithSqlDependency();

        //block main thread - SqlDependency thread will monitor changes
        Console.ReadLine();
        SqlDependency.Stop(connectionString);
    }

    static void RefreshDataWithSqlDependency()
    {
        try
        {
            //Remove existing dependency, if necessary
            if (dependency != null)
            {
                dependency.OnChange -= onDependencyChange;
                dependency = null;
            }

            SqlConnection connection = new SqlConnection(connectionString);
            connection.Open();

            SqlCommand command = new SqlCommand(
             "SELECT id, random_text, dt FROM dbo.my_test_table",
             connection);

            // Create a dependency (class member) and associate it with the command.
            dependency = new SqlDependency(command, null, 60);

            // Subscribe to the SqlDependency event.
            dependency.OnChange += new OnChangeEventHandler(onDependencyChange);

            // start dependency listener
            SqlDependency.Start(connectionString);

            // execute command and refresh data
            refreshData(command);

            connection.Close();
        }
        catch (SqlException ex)
        {
            throw ex;
        }
    }

    private static void onDependencyChange(Object o, SqlNotificationEventArgs args)
    {
        if ((args.Source.ToString() == "Data") || (args.Source.ToString() == "Timeout"))
        {
            Console.WriteLine("Refreshing data due to {0}", args.Source);
            RefreshDataWithSqlDependency();
        }
        else
        {
            Console.ForegroundColor = ConsoleColor.Red;
            Console.WriteLine("Data not refreshed due to unexpected SqlNotificationEventArgs: Source={0}, Info={1}, Type={2}", args.Source, args.Info, args.Type.ToString());
            Console.ForegroundColor = ConsoleColor.Gray;
        }
    }

    private static void refreshData(SqlCommand command)
    {
        var reader = command.ExecuteReader();
        Console.Clear();
        while (reader.Read())
        {
            Console.WriteLine("id = {0}, random_text = {1}, dt = {2}", reader[0], reader[1], reader[2]);
        }
        reader.Close();
    }
}

The project should contain the following references;

Microsoft.CSharp
System
System.Core
System.Data
System.Data.DataSetExtensions
System.Xml
System.Xml.Linq

Compile and run the console app then run some inserts with this TSQL;

INSERT INTO dbo.my_test_table
(
	random_text
)
VALUES (CONVERT(varchar(200), NEWID()));

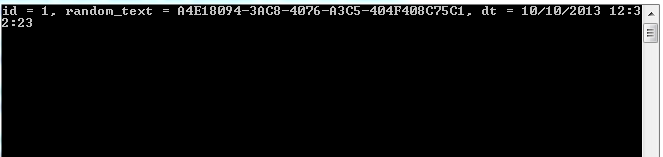

You should see the data displayed by the console app after it is inserted. A refresh will also occur automatically after 60 seconds.

Console app query notifications
If you alter the table you’ll discover the query notification will break;

ALTER TABLE dbo.my_test_table ADD test_col BIT NOT NULL DEFAULT 1;

For real world implementation you’ll want to handle this error so changes don’t break your apps.

Data not refreshed due to unexpected SqlNotificationEventArgs: Source=Object, In
fo=Alter, Type=Change

The following DMV is useful for monitoring Query Notification subscriptions;

SELECT *
FROM sys.dm_qn_subscriptions;
