Partitioning setup for Linux from Scratch in VirtualBox

I’ve finally taken the plunge and committed, to untarring and compiling, a bucket load of source code to complete Linux from Scratch. I’ll be documenting some of my setup here. I’m far from an expert, that’s why I’m doing this, but if you have any constructive criticism I’d be glad to hear it. I’m using VirtualBox and an installation of CentOS to build LFS.

The first task I’ll be undertaking is partitioning a disk ready for my LFS setup. I’ve designed my partition setup based on the advice in the LFS manual: Creating a New Partition.

Partition Size (GB/MB) On Primary
/ (root partition) 10GB 1
/home 10GB 1
/usr 5GB 1
/opt 10GB 1
/swap 2GB 0
/boot 100M 0

* The On Primary = 1 means the partition will be hosted on the first, larger, partition we create.

Add a VirtualBox HDD

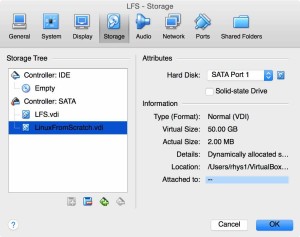

First add VirtualBox hard disk. I added a 50GB drive in VB for this to give me plenty of space for my LFS installation.

Linux From Scratch VirtualBox Disk

Identify the new device

Boot up the host OS, CentOS 7 in my case, and open a command prompt once logged in. The command lsblk can be used to quickly identify the new device. From the output we can easily identify the disk as sdb. It is 50GB and contain no partitions.

linux> lsblk
NAME            MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda               8:0    0   50G  0 disk
├─sda1            8:1    0  500M  0 part /boot
└─sda2            8:2    0 49.5G  0 part
  ├─centos-swap 253:0    0    2G  0 lvm  [SWAP]
  └─centos-root 253:1    0 47.5G  0 lvm  /
sdb               8:16   0   50G  0 disk
sr0              11:0    1 1024M  0 rom

Create a large Primary Partition

First we will create a single large partition. This partition will be the logical container for the above partition mark above as On primary = 1. We will be using fdisk for this. You’ll need to run fdisk as the root user.

fdisk /dev/sdb
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0xdf241aa7.

Command (m for help):

Enter ‘n’ to create a new partition.
Enter ‘e’ for partition type.
Enter ‘1’ for partition number.
Accept the default for first sector.
Enter ‘+40G’ for the last sector.

This partition does not yet exist, we have to tell fdisk to writes changes before that happens. However you can have a look at what will be done by entering the command ‘p’…

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1            2048    83888127    41943040    5  Extended

Now we will add the four logical partitions inside the one above…

Enter ‘n’ to create a new partition.
Enter ‘l’ for logicial.
Accept the default for first sector.
For last sector enter ‘+10G’

Enter ‘n’ to create a new partition.
Enter ‘l’ for logicial.
Accept the default for first sector.
For last sector enter ‘+10G’

Enter ‘n’ to create a new partition.
Enter ‘l’ for logicial.
Accept the default for first sector.
For last sector enter ‘+5G’

Enter ‘n’ to create a new partition.
Enter ‘l’ for logicial.
Accept the default for first sector.
For last sector enter ‘+10G’

Enter the ‘p’ command to print out the partition table

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1            2048    83888127    41943040    5  Extended
/dev/sdb5            4096    20975615    10485760   83  Linux
/dev/sdb6        20977664    41949183    10485760   83  Linux
/dev/sdb7        41951232    52436991     5242880   83  Linux
/dev/sdb8        52439040    73410559    10485760   83  Linux

Finally we will add partitions for the swap and boot partitions. While still in fdisk…

Enter ‘n’ to create a new partition.
Enter ‘p’ for primary.
Accept the default for first sector and partition number.
For last sector enter ‘+2G’

Enter ‘n’ to create a new partition.
Enter ‘p’ for primary.
Accept the default for first sector and partition number.
For last sector enter ‘+100M’

Enter ‘p to print the output. You should have something like below.

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1            2048    83888127    41943040    5  Extended
/dev/sdb2        83888128    88082431     2097152   83  Linux
/dev/sdb3        88082432    88287231      102400   83  Linux
/dev/sdb5            4096    20975615    10485760   83  Linux
/dev/sdb6        20977664    41949183    10485760   83  Linux
/dev/sdb7        41951232    52436991     5242880   83  Linux
/dev/sdb8        52439040    73410559    10485760   83  Linux

Finally enter ‘w’ to write the changes to disk and exit. You can use lsblk again to get a more human friendly view of the partition sizes.

NAME            MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda               8:0    0   50G  0 disk
├─sda1            8:1    0  500M  0 part /boot
└─sda2            8:2    0 49.5G  0 part
  ├─centos-swap 253:0    0    2G  0 lvm  [SWAP]
  └─centos-root 253:1    0 47.5G  0 lvm  /
sdb               8:16   0   50G  0 disk
├─sdb1            8:17   0    1K  0 part
├─sdb2            8:18   0    2G  0 part
├─sdb3            8:19   0  100M  0 part
├─sdb5            8:21   0   10G  0 part
├─sdb6            8:22   0   10G  0 part
├─sdb7            8:23   0    5G  0 part
└─sdb8            8:24   0   10G  0 part
sr0              11:0    1 1024M  0 rom

Format the partitions and give them each a table

From the output of lsblk you can match up the devices using their sizes and give them a label.

sudo mkfs -v -t ext4 /dev/sdb7 -L usr
sudo mkfs -v -t ext4 /dev/sdb3 -L boot
sudo mkfs -v -t ext4 /dev/sdb5 -L root
sudo mkfs -v -t ext4 /dev/sdb6 -L home
sudo mkfs -v -t ext4 /dev/sdb8 -L opt
sudo mkswap /dev/sdb2 -L swap

Mount the partitions

Next create some folders to mount the partitions on….

mkdir /mnt/lfs
chown -R rhys:users /mnt/lfs
export LFS=/mnt/lfs
mount -v -t ext4 /dev/sdb5 $LFS
mkdir /mnt/lfs/usr
mount -v -t ext4 /dev/sdb7 $LFS/usr
mkdir /mnt/lfs/home
mount -v -t ext4 /dev/sdb6 $LFS/home
mkdir /mnt/lfs/opt
mount -v -t ext4 /dev/sdb8 $LFS/opt
mkdir /mnt/lfs/boot
mount -v -t ext4 /dev/sdb3 $LFS/boot
swapon /dev/sdb2

You can view the new mounts with..

linux> df -h
...
dev/sdb5                9.8G   37M  9.2G   1% /mnt/lfs
/dev/sdb7                4.8G   20M  4.6G   1% /mnt/lfs/usr
/dev/sdb6                9.8G   37M  9.2G   1% /mnt/lfs/home
/dev/sdb8                9.8G   37M  9.2G   1% /mnt/lfs/opt
/dev/sdb3                 93M  1.6M   85M   2% /mnt/lfs/boot
...

You may receive a warning about these mounts…

You just mounted an file system that supports labels which does not
contain labels, onto an SELinux box. It is likely that confined
applications will generate AVC messages and not be allowed access to
this file system.  For more details see restorecon(8) and mount(8).

Fix this with…

linux> restorecon -R /mnt

Making the mounts persistent

You can copy the output from /etc/mtab and add an edited version to your /etc/fstab file to make these mounts persistent.

These mounts should probably be owned by the lfs user. I’ll update this section with more detail when I decide precisely what to do.
